Specifications

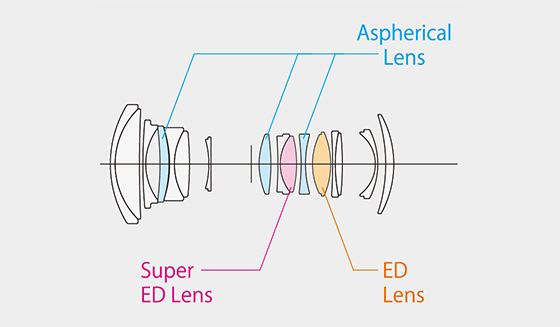

Lens Configuration

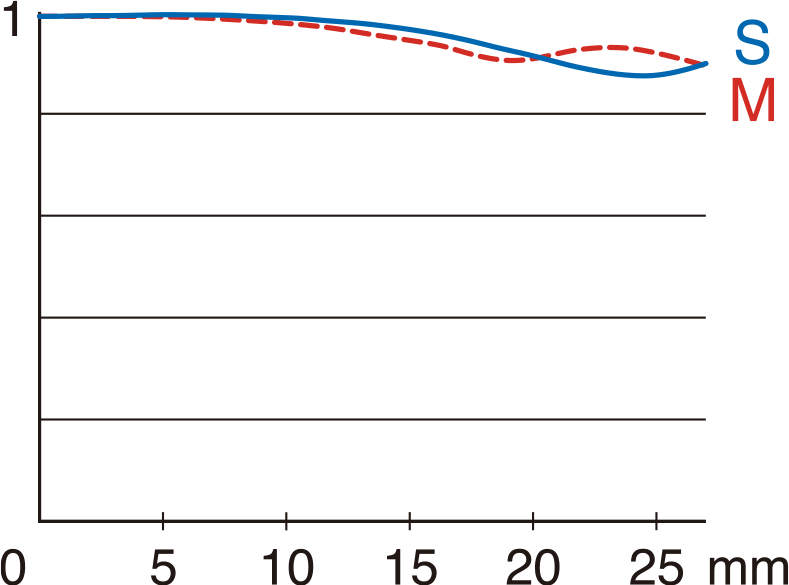

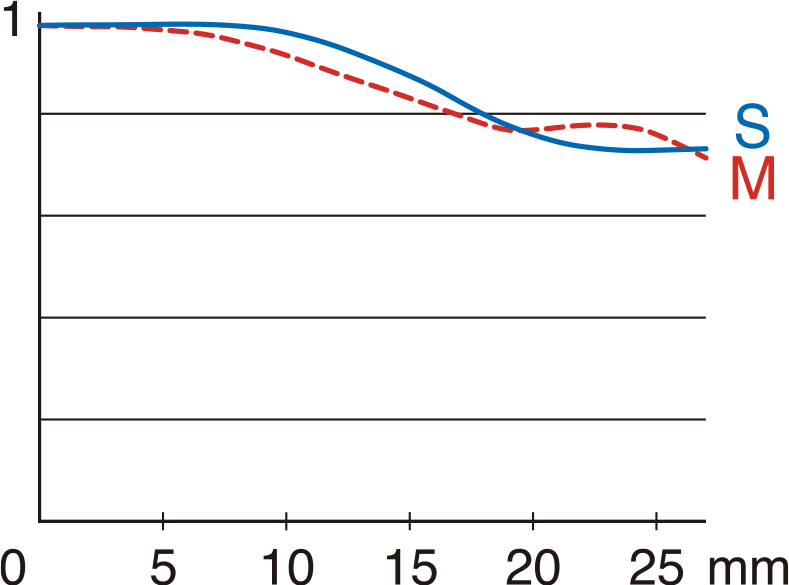

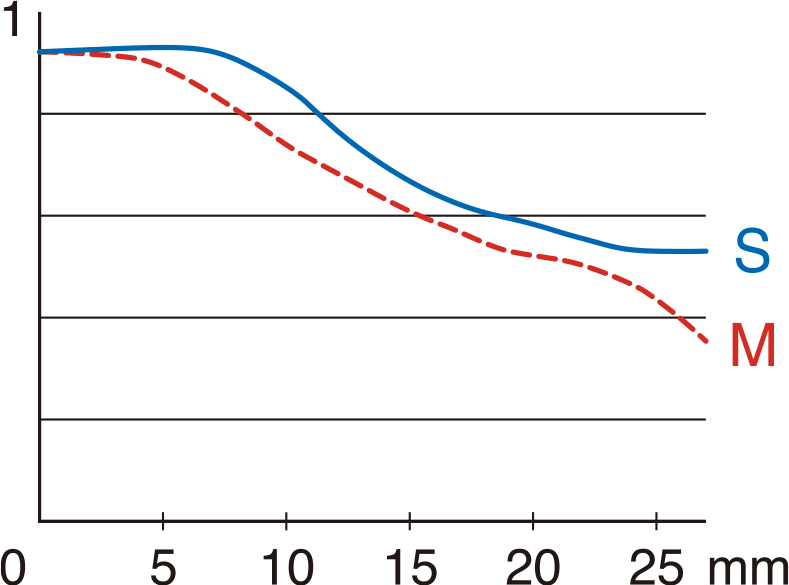

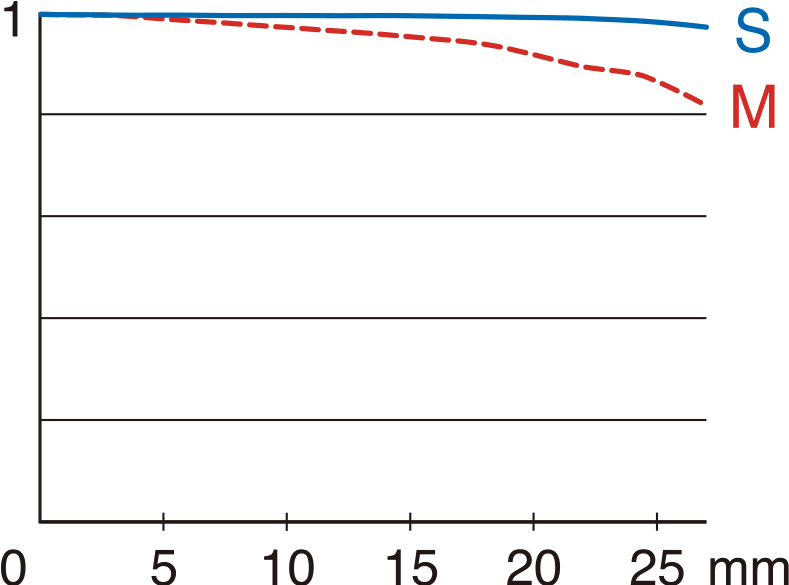

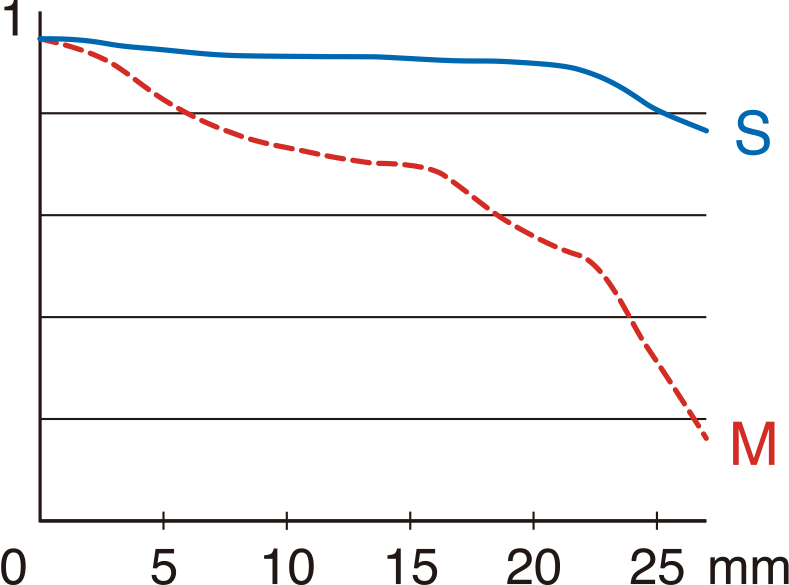

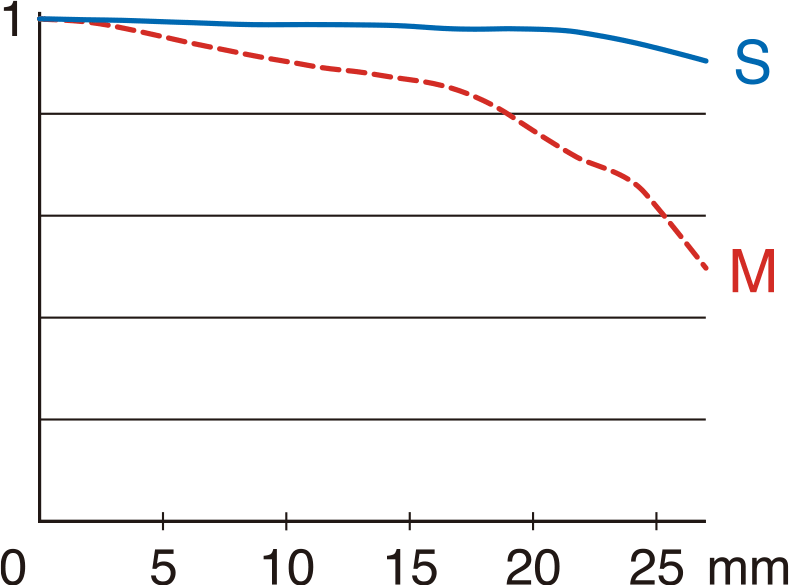

MTF Chart

Vertical axis: Contrast

Horizontal axis: Distance from the center of the image

Specifications

Type FUJINON GF45-100mmF4 R LM OIS WR
Lens configuration 16 elements in 12 groups (includes 3 aspherical, 1 ED and 1 superED elements)
Focal length f=45-100mm (36-79mm in 35mm format equivalent)
Angle of view 62.6°-30.6°
Max. aperture F4
Min. aperture F32
Aperture control Number of blades: 9 (rounded diaphragm opening)
Step size: 1/3EV (19steps)
Minimum Object Distance 0.65m (Wide), 0.82m (Telephoto)
Max. magnification 0.13x (Telephoto)
External dimensions : Diameter x Length*1 (approx.) Φ93mm x 144.5mm (Wide) / Φ93mm x 174.5mm (Telephoto)
Weight*2 (approx.) 1,005g
Filter size Φ82mm
Accessories included Lens Cap FLCP-82
Lens rear cap RLCP-002
Lens hood
Lens pouch

Notes

*1 Distance from camera lens mount flange

*2 Excluding caps and hood

Sample Images

View Larger Image
Image Size 11532 x 8650
Sensitivity ISO 200
Aperture F11.0
Shutter Speed 1/180 sec.
Lens Focal Length 45.0mm
Camera FUJIFILM GFX100
View Larger Image
Image Size 10185 x 6906
Sensitivity ISO 2000
Aperture F5.6
Shutter Speed 1/400 sec.
Lens Focal Length 100.0mm
Camera FUJIFILM GFX100
View Larger Image
Image Size 3889 x 5197
Sensitivity ISO 100
Aperture F20.0
Shutter Speed 1/125 sec.
Lens Focal Length 93.8mm
Camera FUJIFILM GFX 50S
