X-T30 III
Your Story Starts Now
Transform everyday moments into extraordinary images with FUJIFILM X-T30 III.
Compact yet reliable, it fits seamlessly into your daily life,
recording fleeting moments as precious memories you’ll cherish long into the future.
Quality Meets Control
X-T30 III features a 26.1-megapixel back-side illuminated X-Trans CMOS 4 sensor and X-Processor 5 imaging engine.
This combination of quality and speed makes it perfect for recording everyday moments in outstanding detail.
©Jon Kerrin

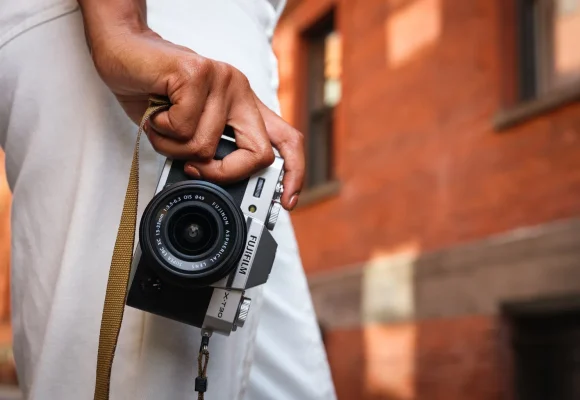

Pocket Size, Classic Style
Compact and Lightweight
Weighing just 378g*, X-T30 III can be put over your shoulder or tucked into a bag, ready to go anywhere. Its compact size means it will always be close to hand, so you’ll be ready to create great images the moment they happen.
*Including battery and memory card.
*Including battery and memory card.

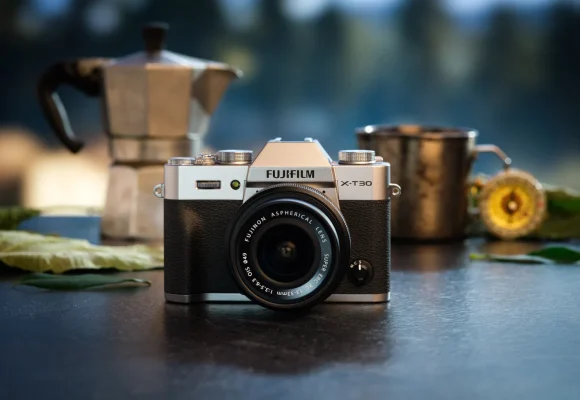

Desirable Design
Inspired by the elegance of classic film cameras, X-T30 III features a beautifully refined design you’ll always want by your side. The central viewfinder immerses you in every scene, while the perfectly contoured grip feels so natural, you’ll never want to put it down.
Your Images, Your Way
Great images are all about the details. With a host of creative controls,
X-T30 III empowers you to make content just the way you want it.
OFF
ON
©Thanai Manasathit
Grain Effect
From subtle textures to the gritty look of traditional high-ISO film stocks, with X-T30 III you can easily add natural-looking grain to your photos. Control the strength and size for just the right amount of texture on any image.
FS Recipe
Preserve precious moments in your own color and style.
Create your own personalized looks, save them,
then instantly recall with a twist of the dial.
Use recipes to make stories that will never be forgotten.
Easy to Operate

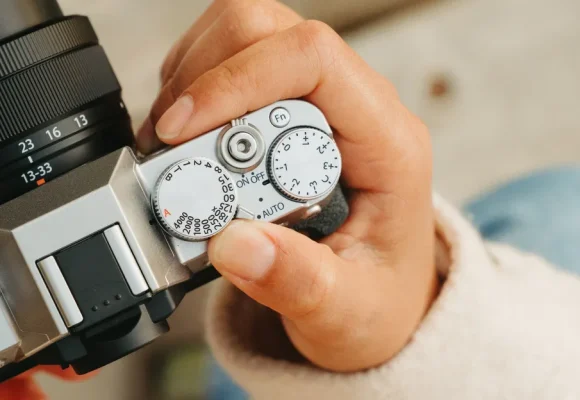

Auto Mode Selector Lever
Switch the Auto Mode Selector Lever on and X-T30 III automatically selects the best exposure and focus settings for each scene.
It recognizes your subject, tracks it, and records the moment, taking care of the technicalities so you can concentrate on perfect framing.

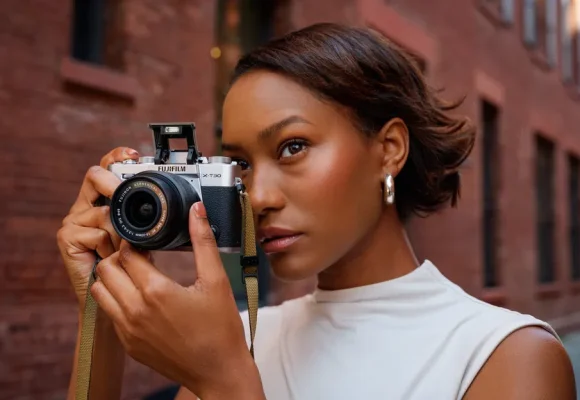

Built-in Flash
Cleverly integrated into the design of the central viewfinder, the built-in flash on X-T30 III automatically selects optimal brightness, gently illuminating your subject even in low-light or backlit situations.
Latest AF Technology
Equipped with the latest predictive AF algorithm, X-T30 III effortlessly tracks moving subjects, even in low contrast scenarios. This ensures precise focus not only for dynamic portraits but also for a variety of fast-moving subjects, including sports, animals, and more.

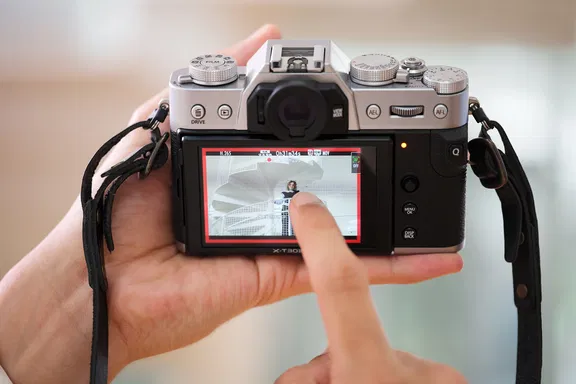

Subject Detection Autofocus
X-T30 III uses X-Processor 5’s subject detection AF to accurately track a range of subjects. Built using deep-learning AI technology, it detects animals, birds, cars, motorcycles, bicycles, airplanes, trains, insects, and drones.*
*Set the SUBJECT DETECTION SETTING to BIRD for insect detection, and AIRPLANE for detecting drones

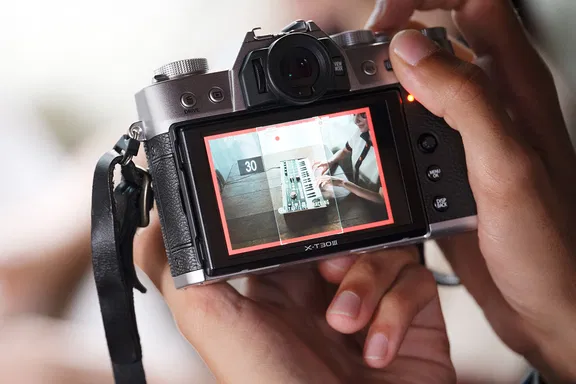

Video Functionality
Comprehensive Video Features

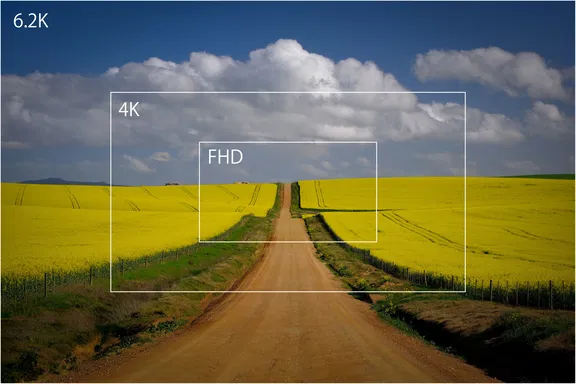

X-T30 III supports internal 6.2K/30p 4:2:2 10-bit recording. It also offers high-frame-rate video recording at 4K/60p and 1080/240p for outstanding slow-motion footage.
Smart Extras

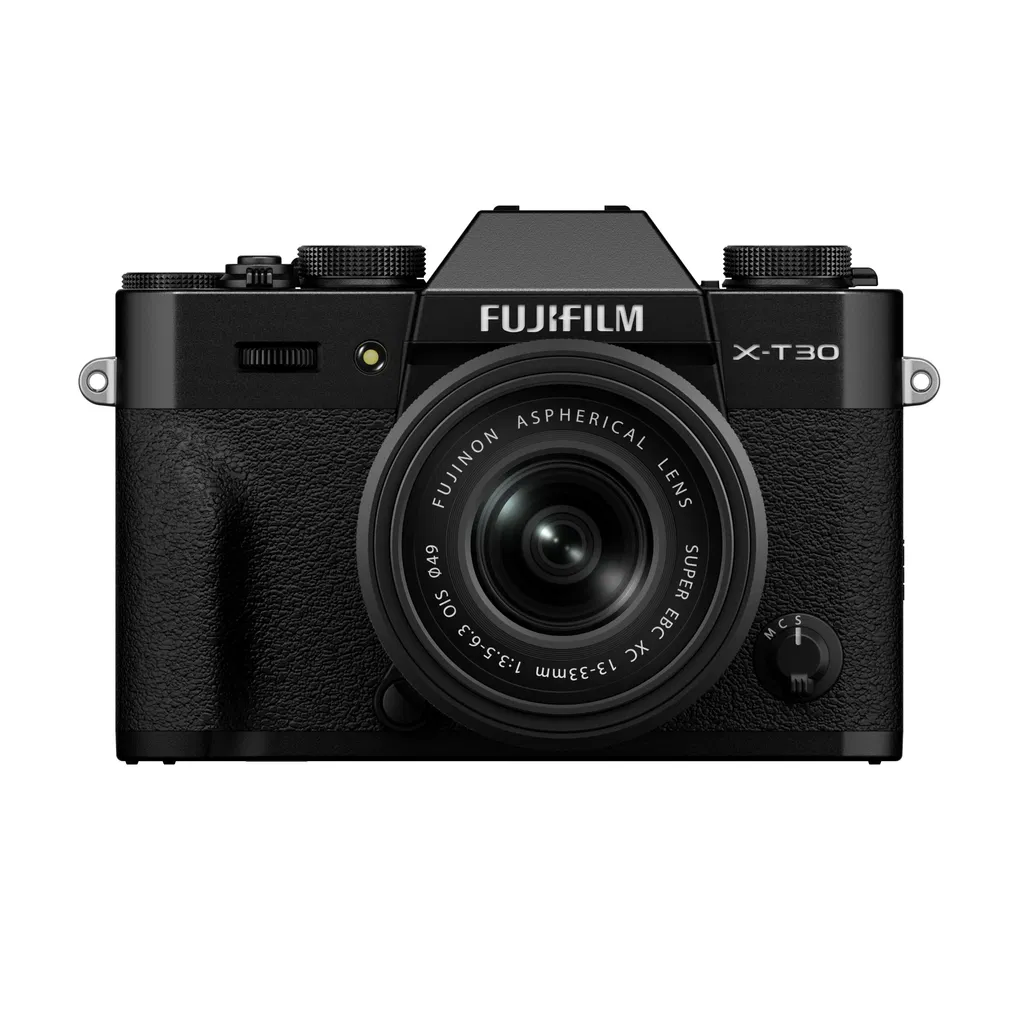

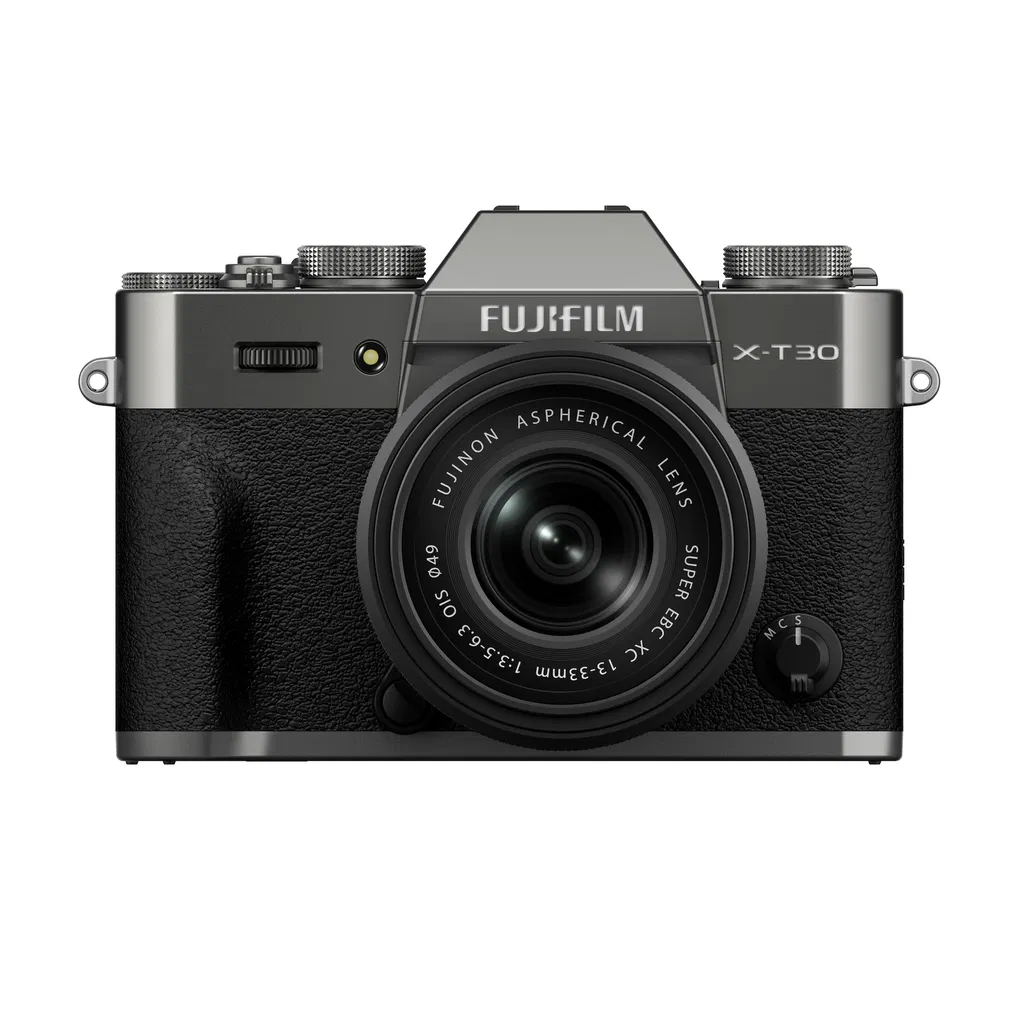

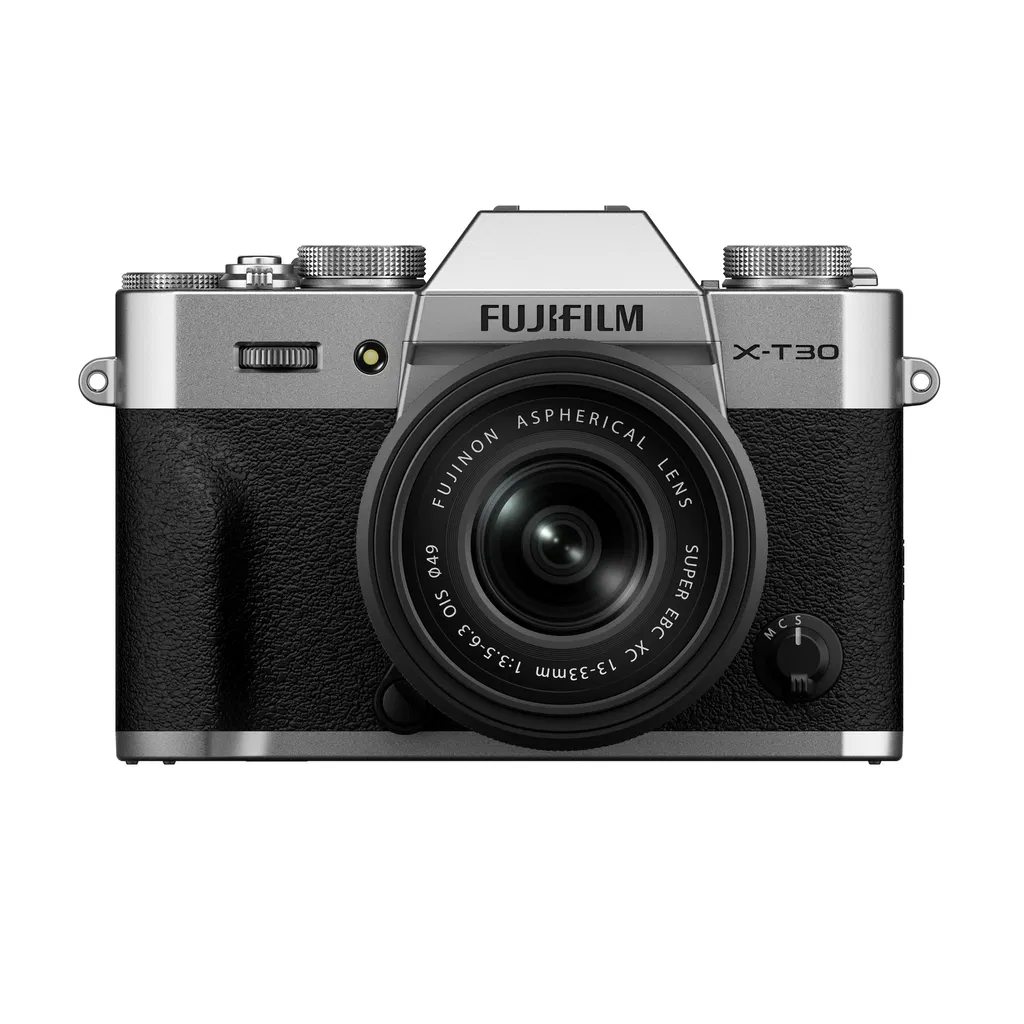

XC13-33mmF3.5-6.3 OIS
Paired with FUJINON XC13-33mmF3.5-6.3 OIS lens, Fujifilm’s smallest and lightest zoom, X-T30 III offers creative versatility, covering focal lengths from wide angle to short telephoto.
Specifications
Model Name
FUJIFILM X-T30 III
Lens Mount
FUJIFILM X mount
Image Sensor
23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter
Number Of Effective Pixels
26.1 millions pixels
Sensor Cleaning System
Ultra Sonic Vibration
Image Processing Engine
X-Processor 5
Storage Media
SD Card (-2GB)
SDHC Card (-32GB)
SDXC Card (-2TB)
UHS-I
*Please see the Fujifilm website (https://fujifilm-x.com/support/compatibility/cameras/) to check memory card compatibility.
File Format Of Still Image
DCF
Compliant with Design rule for Camera File system (DCF2.0)
JPEG
Exif Ver.2.32
HEIF
4:2:2 10bit
RAW
14bit RAW (RAF original format)
TIFF
8bit / 16bit RGB (In-camera Raw Conversion Only)
Notes
*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing
Number Of Recorded Pixels
[L]
3:2: 6240 x 4160
16:9: 6240 x 3512
1:1: 4160 x 4160
16:9: 6240 x 3512
1:1: 4160 x 4160
[M]
3:2: 4416 x 2944
16:9: 4416 x 2488
1:1: 2944 x 2944
16:9: 4416 x 2488
1:1: 2944 x 2944
[S]
3:2: 3120 x 2080
16:9: 3120 x 1760
1:1: 2080 x 2080
16:9: 3120 x 1760
1:1: 2080 x 2080
[instax]
instax mini: 1568 x 2080
instax SQUARE: 2080 x 2080
instax WIDE: 3120 x 1984
instax SQUARE: 2080 x 2080
instax WIDE: 3120 x 1984
Panorama
[L]
vertical: 2160 x 9600
horizontal: 9600 x 1440
horizontal: 9600 x 1440
[M]
vertical: 2160 x 6400
horizontal: 6400 x 1440
horizontal: 6400 x 1440
Sensitivity
Still Image
Standard Output
AUTO1
AUTO2
AUTO3
ISO160~12800 (1/3 step)
Extended Output
ISO80
ISO100
ISO125
ISO25600
ISO51200
Movie
Standard Output
AUTO
ISO160~12800 (1/3 step)
Extended Output
ISO25600
Exposure Control
TTL 256-zone metering
Multi
Spot
Average
Center Weighted
Multi
Spot
Average
Center Weighted
Exposure Mode
P (Program AE)
A (Aperture Priority AE)
S (Shutter Speed Priority AE)
M (Manual Exposure)
A (Aperture Priority AE)
S (Shutter Speed Priority AE)
M (Manual Exposure)
Exposure Compensation
Still
-5.0EV~+5.0EV 1/3EV step
Movie
-2.0EV~+2.0EV 1/3EV step
Image Stabilizer
Digital Image Stabilization
Yes (movie mode only)
IS MODE BOOST
Yes (movie mode only)
Shutter Type
Focal Plane Shutter
Shutter Speed
Mechanical Shutter
P Mode
30sec. to 1/4000sec.
A Mode
30sec. to 1/4000sec.
S/M Mode
15min. to 1/4000sec.
Bulb
up to 60min.
Electronic Shutter
P Mode
30sec. to 1/32000sec.
A Mode
30sec. to 1/32000sec.
S/M Mode
15min. to 1/32000sec.
Bulb
1sec. Fixed
Electronic Front Curtain Shutter
P Mode
30sec. to 1/4000sec.
A Mode
30sec. to 1/4000sec.
S/M Mode
15min. to 1/4000sec.
Bulb
up to 60min.
Mechanical + Electronic Shutter
P Mode
30sec. to 1/32000sec.
A Mode
30sec. to 1/32000sec.
S/M Mode
15min. to 1/32000sec.
Bulb
up to 60min.
Notes
*Mechanical shutter works until 1/4000sec.
E-front + Mechanical Shutter
P Mode
30sec. to 1/4000sec.
A Mode
30sec. to 1/4000sec.
S/M Mode
15min. to 1/4000sec.
Bulb
up to 60min.
Notes
*Electronic front curtain shutter works until 1/2000sec.
E-front + Mechanical + Electronic Shutter
P Mode
30sec. to 1/32000sec.
A Mode
30sec. to 1/32000sec.
S/M Mode
15min. to 1/32000sec.
Bulb
up to 60min.
Notes
*Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/4000sec.
*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used.
*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used.
Movie
6.2K
1/4000sec. to 1/24 sec.
4K/DCI4K
1/4000sec. to 1/24 sec.
FHD
1/4000sec. to 1/24 sec.
Notes
*Cannot choose slower shutter speed than framerate.
Synchronized Shutter Speed For Flash
Mechanical Shutter
1/180sec. or slower
Continuous Shooting
CH
Electronic Shutter
Approx. 30fps (1.25x Crop)
JPEG
128frames
Compressed RAW
78frames
Lossless Compressed RAW
46frames
Uncompressed RAW
23frames
Compressed RAW + JPEG
32frames
Lossless Compressed RAW + JPEG
27frames
Uncompressed RAW + JPEG
21frames
Electronic Shutter
Approx. 20fps (1.25x Crop)
JPEG
141frames
Compressed RAW
81frames
Lossless Compressed RAW
47frames
Uncompressed RAW
24frames
Compressed RAW + JPEG
46frames
Lossless Compressed RAW + JPEG
38frames
Uncompressed RAW + JPEG
21frames
Electronic Shutter
Approx. 10fps (1.25x Crop)
JPEG
204frames
Compressed RAW
113frames
Lossless Compressed RAW
57frames
Uncompressed RAW
25frames
Compressed RAW + JPEG
66frames
Lossless Compressed RAW + JPEG
54frames
Uncompressed RAW + JPEG
22frames
Electronic Shutter
Approx. 20fps
JPEG
127frames
Compressed RAW
60frames
Lossless Compressed RAW
34frames
Uncompressed RAW
23frames
Compressed RAW + JPEG
34frames
Lossless Compressed RAW + JPEG
26frames
Uncompressed RAW + JPEG
21frames
Electronic Shutter
Approx. 10fps
JPEG
155frames
Compressed RAW
79frames
Lossless Compressed RAW
41frames
Uncompressed RAW
24frames
Compressed RAW + JPEG
48frames
Lossless Compressed RAW + JPEG
39frames
Uncompressed RAW + JPEG
22frames
Electronic Shutter
Approx. 8fps
JPEG
173frames
Compressed RAW
82frames
Lossless Compressed RAW
41frames
Uncompressed RAW
25frames
Compressed RAW + JPEG
52frames
Lossless Compressed RAW + JPEG
37frames
Uncompressed RAW + JPEG
23frames
Electronic Shutter
Approx. 8.0fps
JPEG
173frames
Compressed RAW
82frames
Lossless Compressed RAW
38frames
Uncompressed RAW
25frames
Compressed RAW + JPEG
52frames
Lossless Compressed RAW + JPEG
34frames
Uncompressed RAW + JPEG
23frames
Mechanical Shutter
Approx. 8fps
JPEG
173frames
Compressed RAW
82frames
Lossless Compressed RAW
38frames
Uncompressed RAW
25frames
Compressed RAW + JPEG
52frames
Lossless Compressed RAW + JPEG
34frames
Uncompressed RAW + JPEG
23frames
CL
Mechanical Shutter
Approx. 5.0fps
JPEG
1000+frames
Compressed RAW
163frames
Lossless Compressed RAW
48frames
Uncompressed RAW
27frames
Compressed RAW + JPEG
65frames
Lossless Compressed RAW + JPEG
39frames
Uncompressed RAW + JPEG
26frames
Mechanical Shutter
Approx. 4.0fps
JPEG
1000+frames
Compressed RAW
1000+frames
Lossless Compressed RAW
65frames
Uncompressed RAW
28frames
Compressed RAW + JPEG
90frames
Lossless Compressed RAW + JPEG
51frames
Uncompressed RAW + JPEG
27frames
Mechanical Shutter
Approx. 3.0fps
JPEG
1000+frames
Compressed RAW
1000+frames
Lossless Compressed RAW
152frames
Uncompressed RAW
38frames
Compressed RAW + JPEG
188frames
Lossless Compressed RAW + JPEG
62frames
Uncompressed RAW + JPEG
33frames
Pre-shot
Electronic Shutter, 1.25 X Crop
Approx. 30fps (1.25x Crop)
30frames
75frames
105frames
Electronic Shutter, 1.25 X Crop
Approx. 20fps (1.25x Crop)
20frames
576frames
596frames
Electronic Shutter, 1.25 X Crop
Approx. 10fps (1.25x Crop)
10frames
1000+frames
1000+frames
Electronic Shutter, 1.25 X Crop
Approx. 8fps
8frames
1000+frames
1000+frames
Electronic Shutter
Approx. 20fps
20frames
998frames
1018frames
Electronic Shutter
Approx. 10fps
10frames
1000+frames
1000+frames
Notes
*No. of recordable frames are calculated based on a cold start
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames
Drive Mode
AE Bracketing
2 frames
3 frames
5 frames
7 frames
9 frames
*by 1/3EV step, up to ±3EV steps
3 frames
5 frames
7 frames
9 frames
*by 1/3EV step, up to ±3EV steps
Filmsimulation Bracketing
Any 3 types of film simulation selectable
Dynamic Range Bracketing
100%
200%
400%
200%
400%
ISO Sensitivity Bracketing
±1/3EV
±2/3EV
±1EV
±2/3EV
±1EV
White Balance Bracketing
±1
±2
±3
±2
±3
Focus Bracketing
AUTO
MANUAL
MANUAL
Multiple Exposure
Yes (Max. 9 frames)
Additive
Average
Bright
Dark
Additive
Average
Bright
Dark
HDR Mode
AUTO
200%
400%
800%
800% +
200%
400%
800%
800% +
Advanced Filter
Toy camera
Miniature
Pop color
High-key
Low-key
Dynamic tone
Soft focus
Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Miniature
Pop color
High-key
Low-key
Dynamic tone
Soft focus
Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Focus
Mode
Single AF
Continuous AF
MF
Continuous AF
MF
Type
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
Low-light Performance
Contrast
-4.0EV
XF50mmF1.0 attached
XF50mmF1.0 attached
Phase Detection
-7.0EV
XF50mmF1.0 attached
XF50mmF1.0 attached
AF Frame Selection
Single Point AF
13×9 / 25×17 (Changeable size of AF frame)
Zone AF
3×3 / 5×5 / 7×7 / Custom1-3 from 117 areas on 13×9 grid
Wide/Tracking AF
Yes (AF-S: Wide / AF-C: Tracking)
All
Yes
Face/eye Detection
Yes
Subject Detection
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
Flash
Built-in Flash
Built-in Flash
Manual pop-up flash (Super Intelligent Flash)
Guide Number
approx. 7 (ISO200・m) / approx. 5 (ISO100・m)
Sync. Mode
1st Curtain
2nd Curtain
Flash Mode
TTL (TTL AUTO / STANDARD / SLOW SYNC. )
MANUAL
COMMANDER
OFF
Shoe Mount Flash
Sync. Mode
1st Curtain
2nd Curtain
AUTO FP (HSS)
Flash Mode
TTL (TTL AUTO / STANDARD / SLOW SYNC. )
MANUAL
MULTI *When EF-X500 is set
OFF
Hot Shoe
Yes (Dedicated TTL Flash compatible)
Viewfinder
EVF
EVF
0.39 inch OLED Color Viewfinder
Approx. 2.36 million dots
Approx. 2.36 million dots
Coverage Of Viewing Area Vs. Capturing Area
Approx. 100%
Eyepoint
Approx. 17.5mm (from the Rear End of the Camera’s Eyepiece)
Diopter Adjustment
-4~+2m-1
Magnification
0.62x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle Of View
approx. 31° (Horizontal angle of view: approx. 26° )
Built-In Eye Sensor
LCD Monitor
LCD Monitor
3.0 inch Tilt-Type Touch Screen Color LCD Monitor
Aspect Ratio
3:2
Dots
Approx. 1.62 million dots
Touch Screen Mode
Shooting Mode
Shooting
AF
Focus Area
OFF
Double Tap Setting (ON/OFF)
Touch Function Setting (ON/OFF)
Touch Zoom (ON/OFF)
EVF Touch Screen Area Setting
Playback Mode
Swipe
Pinch-in / Pinch-out
Double-tap
Drag
Movie Recording
File Format
MOV
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MP4
MPEG-4 AVC/H.264, AAC
Movie Compression
Long GOP
6.2K(3:2)
File Size
6240 x 4160
Frame Rate
29.97p
25p
24p
23.98p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
DCI4K(17:9)
File Size
4096 x 2160
Frame Rate
59.94p
50p
29.97p
25p
24p
23.98p
50p
29.97p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
4K(16:9)
File Size
3840 x 2160
Frame Rate
59.94p
50p
29.97p
25p
24p
23.98p
50p
29.97p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
Full HD(17:9)
File Size
2048 x 1080
Frame Rate
59.94p
50p
29.97p
25p
24p
23.98p
50p
29.97p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
Full HD(16:9)
File Size
1920 x 1080
Frame Rate
59.94p
50p
29.97p
25p
24p
23.98p
50p
29.97p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
Full HD(9:16)
File Size
1080 x 1920
Frame Rate
29.97p
25p
24p
23.98p
25p
24p
23.98p
Bitrate
200Mbps
100Mbps
50Mbps
25Mbps
8Mbps
100Mbps
50Mbps
25Mbps
8Mbps
Full HD(17:9) High Speed Rec.
File Size
2048 x 1080
Frame Rate
240p
200p
120p
100p
200p
120p
100p
Bitrate
200Mbps (recording)
Full HD(16:9) High Speed Rec.
File Size
1920 x 1080
Frame Rate
240p
200p
120p
100p
200p
120p
100p
Bitrate
200Mbps (recording)
Notes
*For recording movies, use a SD memory card with UHS Speed Class 3 or higher.
*Selectable bitrate will be changed depends on the setting.
*Recording time can become short depending on the temperature and/or shooting conditions
*Selectable bitrate will be changed depends on the setting.
*Recording time can become short depending on the temperature and/or shooting conditions
AUTO Mode Setting
AUTO
Portrait
Portrait Enhancer
Landscape
Sport
Night
Night (Tripod)
Fireworks
Sunset
Snow
Beach
Underwater
Party
Flower
Text
Portrait
Portrait Enhancer
Landscape
Sport
Night
Night (Tripod)
Fireworks
Sunset
Snow
Beach
Underwater
Party
Flower
Text
Film Simulation Mode
20 modes
PROVIA/Standard
Velvia/Vivid
ASTIA/Soft
Classic Chrome
REALA ACE
PRO Neg.Hi
PRO Neg.Std
Classic Neg.
Nostalgic Neg.
ETERNA/Cinema
ETERNA BLEACH BYPASS
ACROS
ACROS + Ye Filter
ACROS + R Filter
ACROS + G Filter
Black & White
Black & White + Ye Filter
Black & White + R Filter
Black & White + G Filter
Sepia
Monochromatic Color
Yes
Grain Effect
Roughness
STRONG, WEAK, OFF
Size
LARGE, SMALL
Color Chrome Effect
STRONG, WEAK, OFF
Color Chrome Blue
STRONG, WEAK, OFF

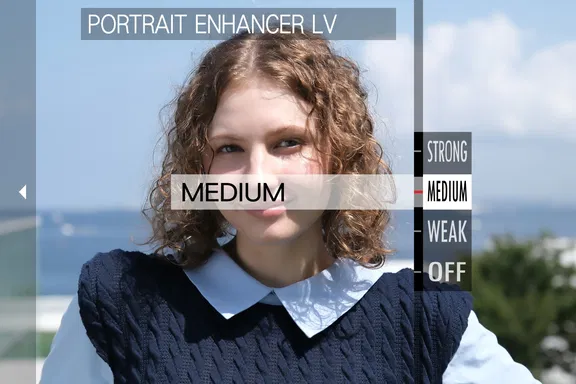

Portrait Enhancer Lv
STRONG, MEDIUM, WEAK, OFF
Dynamic Range Setting
Still
Still
AUTO / 100％ / 200％ / 400％
ISO Restriction
DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more
Movie
Movie
100％ / 200％ / 400％
ISO Restriction
DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more
White Balance
Auto
White Priority
Auto
Ambience Priority
Auto
Ambience Priority
Custom
Custom1 – 3
Color Temperature Selection
2500K~10000K
Preset
Daylight
Shade
Fluorescent Light-1
Fluorescent Light-2
Fluorescent Light-3
Incandescent Light
Underwater
Shade
Fluorescent Light-1
Fluorescent Light-2
Fluorescent Light-3
Incandescent Light
Underwater
Clarity Setting
±5 steps
Self-timer
Still
10sec.
2sec.
2sec.
Movie
10sec.
5sec.
3sec.
5sec.
3sec.
Interval Timer Shooting
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode)
Wireless Transmitter
Standard
IEEE802.11b/g/n (standard wireless protocol)
Encryption
WPA2, WPA3
Access Mode
Infrastructure
Bluetooth®
Standartd
Bluetooth Ver. 5.2 (Bluetooth low energy)
Operating Frequency (Center Frequency)
2402〜2480MHz
Terminal
Digital Interface
USB Type-C USB 10Gbps
HDMI Output
HDMI Micro connector (Type D)
Others
ø2.5mm, stereo mini connector (Microphone & Remote Release)
Hot shoe
Hot shoe
Power Supply
Power Supply
NP-W126S Li-ion battery (included)
Battery Life For Still Images
Economy Mode
Approx. 425 frames
Normal Mode
Approx. 315 frames
Notes
*When XF35mmF1.4 R is set
Actual Battery Life Of Movie Capture
6.2K
Approx. 45min. (29.97p)
4K
Approx. 40min. (59.94p)
Full HD
Approx. 45min. (59.94p), Approx. 50min. (120P)
Notes
*Face detection is set to OFF
Continuance Battery Life Of Movie Capture
6.2K
Approx. 65min. (29.97p)
4K
Approx. 50min. (59.94p)
Full HD
Approx. 80min. (59.94p)
Notes
*Face detection is set to OFF
Notes
*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.
Dimensions
Width
118.4mm
Height
82.8mm
Depth
46.8mm
(Minimum Depth)
(31.9mm)
Weight
Including Battery And Memory Card
Approx. 378g
Excluding Battery And Memory Card
Approx. 329g
Operation Environment
Operating Temperature
0℃~+40℃
Operating Humidity
10%~80% (no condensation)
Starting up period
Approx. 0.8sec.
Accessories Included
Li-ion battery NP-W126S
Headphone adapter
Shoulder strap
Body cap
Headphone adapter
Shoulder strap
Body cap
Media Rec (SD memory card)
| Resolution/Aspect | Size | Frame rate | File format/Compression | Bit rate*1 | Bit depth | HDMI output Resolution(Frame rate)/Sampling/Bit depth HDMI | Crop Magnification | |
|---|---|---|---|---|---|---|---|---|
| DIS ON | DIS OFF | |||||||
| 6.2K 3:2 | 6240 x 4160 | 29.97p 25.00p 24.00p 23.98p | H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 200Mbps 100Mbps 50Mbps 25Mbps 8Mbps | 10bit | FHD 4:2:2 10bit (H.265 Long GOP 4:2:2 MOV selected)*2*3 4K 4:2:2 10bit (H.265 Long GOP 4:2:0 MOV selected)*2*3 | Not possible | 1.0x |
| DCI4K 17:9 4K 16:9 | 4096 x 2160 3840 x 2160 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 200Mbps 100Mbps 50Mbps 25Mbps 8Mbps | 10bit | DCI4K/4K 4:2:2 10bit | 59.94p/50.00p:1.22x 29.97p/25.00p/24.00p/ 23.98p:1.32x | 59.94p/50.00p:1.18x 29.97p/25.00p/24.00p/ 23.98p:1.0x |
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 200Mbps 100Mbps 50Mbps 25Mbps 8Mbps | 8bit | DCI4K/4K 4:2:2 8bit | |||||
| FHD 17:9 FHD 16:9 FHD 9:16 | 2048 x 1080 1920 x 1080 1080 x 1920 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 200Mbps 100Mbps 50Mbps 25Mbps 8Mbps | 10bit | FHD 4:2:2 10bit*3 | 1.32x | 1.0x |
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 200Mbps 100Mbps 50Mbps 25Mbps 8Mbps | 8bit | FHD 4:2:2 8bit*3 | |||||
| High speed FHD 17:9 FHD 16:9 | 2048 x 1080 1920 x 1080 | 240fps(4×/8×/10×) 200fps(4×/8×) 120p (2x/4x/5x) 100p (2x/4x) | H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 200Mbps (when recording) | 10bit | FHD(59.94p) 4:2:2 10bit*4 | Not possible | 1.29x |
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 200Mbps (when recording) | 8bit | FHD(59.94p) 4:2:2 8bit*4 | |||||
HDMI Output
| Resolution/Aspect | Size | Frame rate | HDMI output Resolution/Sampling/Bit depth | Crop Magnification | |
|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||
| 6.2K 3:2 | 6240 x 4160 | 29.97p 25.00p 24.00p 23.98p | FHD 4:2:2 10bit*2*3 | Not possible | 1.0x |
| DCI4K 17:9 4K 16:9 | 4096 x 2160 3840 x 2160 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | DCI4K/4K 4:2:2 10bit | 59.94p/50.00p:1.22x 29.97p/25.00p/24.00p/ 23.98p:1.32x | 59.94p/50.00p:1.18x 29.97p/25.00p/24.00p/ 23.98p:1.0x |
| FHD 17:9 FHD 16:9 | 2048 x 1080 1920 x 1080 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | FHD 4:2:2 10bit | 1.32x | 1.0x |
HDMI Output (High speed REC HDMI ONLY）
| Resolution/Aspect | Size | Frame rate | HDMI output Resolution(Frame rate)/Sampling/Bit depth | Crop Magnification | |
|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||
| FHD 16:9 | 1920 x 1080 | 120p 100p | FHD(120p/100p) 4:2:2 10bit | Not possible | 1.29x |
HDMI RAW Output
| Resolution/Aspect | Size | Frame rate | Bit depth | Crop Magnification | |
|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||
| 6.2K 3:2 | 6240 x 4160 | 29.97p 25.00p 24.00p 23.98p | 12bit | Not possible | 1.0x |
| 5.2K 16:9 | 5232 x 2944 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | 12bit | Not possible | 1.19x |
- *1 Bit rate will be changed depend on the subject
- *2 The resolution from HDMI output is different from selected setting
- *3 When the aspect ratio is not 16:9, the image is output in 16:9 with a black band
- *4 The frame rate from HDMI output is different from selected setting
Gallery
| Shooting Mode | Aperture-Priority |
| Image Size | 2000 x 3000 |
| Sensitivity | ISO640 |
| Aperture | F16 |
| Shutter Speed | 1/500 |
| White Balance | AUTO |
| Lens | XC13-33mmF3.5-6.3 OIS |
| Shooting Mode | Manual |
| Image Size | 2000 x 3000 |
| Sensitivity | ISO8000 |
| Aperture | F4 |
| Shutter Speed | 1/320 |
| White Balance | Manual |
| Lens | XF16-55mmF2.8 R LM WR II |
| Shooting Mode | Manual |
| Image Size | 3000 x 2000 |
| Sensitivity | ISO1250 |
| Aperture | F3.2 |
| Shutter Speed | 1/1000 |
| White Balance | Manual |
| Lens | XF50-140mmF2.8 R LM OIS WR |
| Shooting Mode | Aperture-Priority |
| Image Size | 3000 x 2000 |
| Sensitivity | ISO12800 |
| Aperture | F8 |
| Shutter Speed | 1/100 |
| White Balance | AUTO |
| Lens | XF16-55mmF2.8 R LM WR II |
| Shooting Mode | Manual |
| Image Size | 3000 x 2000 |
| Sensitivity | ISO160 |
| Aperture | F11 |
| Shutter Speed | 1.5 |
| White Balance | AUTO |
| Lens | XF150-600mmF5.6-8 R LM OIS WR |
| Shooting Mode | Manual |
| Image Size | 3000 x 2000 |
| Sensitivity | ISO3200 |
| Aperture | F6.3 |
| Shutter Speed | 1/125 |
| White Balance | Manual |
| Lens | XC13-33mmF3.5-6.3 OIS |
